Specializing in integrated commercial reverse osmosis and commercial water treatment systems to meet virtually any water purification requirement. Traditional applications for our products include purification of potable water supplies, bottled water production, desalination, industrial process water preparation, and high purity water systems, including pharmaceutical systems.

Why a commercial reverse osmosis from RainDance Water Systems? Because we can customize absolutely everything tailored to the customer's water chemistry and ambient operating conditions. A reverse osmosis unit for Japan will be significantly different from one sent to Alaska. If your application requires custom water treatment please use our hassle free quote or choose from our most popular cost effective, user friendly commercial reverse osmosis systems listed below. Choose from our Skid Mount, Vertical Mount, Horizontal Mount, Wall Mount, Compact and Portable RO systems.

Shipping water treatment systems outside the United States - Our water treatment equipment is currently being utilized throughout the Middle East from Kuwait, Oman, Qatar, and Afghanistan to the United Kingdom to Japan. In most cases we can offer equipment crating at no charge. We can also provide you with a freight quote or have the unit ready for your freight forwarder to pick up.

 Commercial reverse osmosis for over sea's shipments - please indicate your voltage (power requirements)

For example: 220 or 230v / 60hz or 380v / 50hz

State Of The Art and Custom-Made Water Treatment Equipment Built For Your Specific Business
Featuring Commercial Reverse Osmosis Systems, Reverse Osmosis Membrane Cleaning Services, Qualified R.O. Tech Support
TSM-Series: 400gpd-1,500gpd ~TV-Series: 2000gpd-12,000gpd ~ TH-Series: 15,000gpd-24,000gpd ~ TP-Series: 35,000gpd-1,000,000gpd






Running any of our R.O. systems listed below at 100% duty cycle (24/7) will significantly shorten the life of the pump/motor so it is not recommended. Generally, these reverse osmosis systems will do well if run at 75% (3 hours on, 1 hour off for example) or less duty cycle. The usual sizing formula for a R.O. System is to make it twice the actual needed water flow. If the usage needs 1000 GPD then a 2000 GPD system would be appropriate. This also allows some excess system capacity in case the usage requirement rises later on.

We offer reverse osmosis water purification solutions for manufacturing including bottled water stores, pharmaceutical, electronic industry, process water, chemical industry, electroplating industry, electrical power generating, polymer solutions and more.

Water Systems proven to solve your water treatment needs. Typical applications of a Commercial Reverse Omsosis Water Filter are:

  • Water Treatment From 150gpd to 1,000,000gpd
  • Agriculture-Dairy, Cattle, Horse, Swine
  • Schools And Work Shops
  • Green Houses- Orchards, Groves
  • Food & Beverage Industry
  • Hemodialysis
  • Pharmaceutical
  • Electronic Industry
  • Process Water
  • Chemical Industry
  • Electroplating Industry
  • Electrical Power Generating
  • Polymer Solutions
  • And many More
  • For Sea Water Purification Please See Our Sea Water Reverse Osmosis
  • Water Store Business's Please Click Here: Water Store Equipment
  • Semiconductor, Power generation , Industrial boiler feed makeup, Electronics, Pharmaceuticals, Biotechnology, Chemical manufacturing, Laboratories See our EDI Electrodeionization Systems
  • Membrane softening and membrane technologies see our NanoFiltration Systems
  • TSM Series Commercial Reverse Osmosis Water Purifiers - great performance, visual appeal, user friendly, and stainless steel throughout. TSM reverse osmosis applications include micro breweries, supermarket produce and food preparation operations, misting and humidification systems, car wash facilities, and many other businesses that must have consistent high quality water for their daily operations. The key factors of reliability, serviceability, and consistent performance with minimum user intervention are achieved in the solid design of the TSM systems.

High Capacity Portable Emergency Water Purification: Portable - Ready to Use - Easy to Store! Designed to produce safe drinking water in any type of emergency, this system is able to purify fresh water from wells, lakes, ponds, rivers, swimming pools, questionable city treated water or storage containers Check out our selection of emergency back-up portable water filters at http://www.raindanceh2ostore.com/emergency-portable-water-purification-systems.html

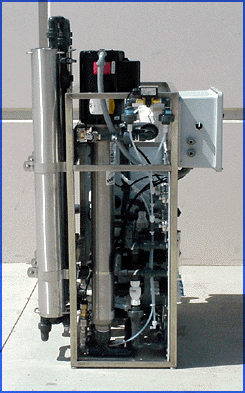

TV Series Reverse Osmosis Water Filter Systems
Each TV-RO unit is equipped with casters for maximum portability

TV Series reverse osmosis systems are designed for applications such as glassware, rinsing, beverage, solution preparation, and numerous other scientific, commercial and industrial applications. Water purified by reverse osmosis has had often greater than 95%of dissolved ions, and 99% of most contaminants removed.

TV Series commercial reverse osmosis systems are designed to filter well water or city tap water. Typical applications include: Agriculture, Livestock, Green Houses, Wineries, Orchards, Groves, Food, Ice,and Beverage Industry, Bottled Water Stores, Pharmaceutical, Electronic Industry, Process Water, Chemical Industry, Electroplating Industry, Electrical Power Generating, Polymer Solutions, Perfect for low mineral and contaminant filtration applications and more.

Why is pretreatment needed? For the preservation of the efficiency and life span of a Reverse Osmosis System (RO) installation, a sufficient pre-treatment is required. A proper selection of pre-treatment methods for feed water will improve affectivity and extend the life span of the system by preventing or minimizing iron, manganese chlorine/organic fouling, scaling and membrane plugging. If your application is using well water please fax (1-760-896-6999) or email sales@roconsumables.com your water analysis. Once your well water test has be reviewed we can add the proper pretreatment. If the feed water you are treating is from a city municipal water treatment plant (tap water) email sales@roconsumables.com the name of your water district or provider and we will let you know what type of pretreatment that is required.


Vertical Mount 2,000gpd - 12,000gpd Water Production
TV Series Commercial / Industrial Reverse Osmosis Water Purifiers

TV SERIES QUALITY COMMERCIAL REVERSE OSMOSIS - User Friendly, Compare Standard Features Listed Below:
TV series are designed for commercial /industrial applications where floor space is at a premium. All major system elements are mounted within a sturdy tubular stainless steel frame, welded for long term rigidity and open for easy access to all components. The TV system is a compact, heavy duty R.O. water purifier for users requiring 2000 to 12000 gallons per day water production. TV systems are fully equipped with the instruments and controls needed for reliable long term operation.

All 2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems Include Our Following "BEST" Features:
.. Stainless steel frame for long lasting durability
.. Structural ABS control panel
.. On / Off Switch
.. Float Switch For Atmospheric Tank
.. 20” Prefilter:
High Chemical Absorptive Capacity, Significantly Reduces Chlorine, Volatile Organic Compounds (VOC), and TOC.
.. Quick connect brine and product connections
.. Feed and membrane vessel pressure gauges
.. Product water flowmeter
.. Brine and recirculation flow meters with integral needle valves
.. Low pressure cut off
.. High pressure switch
.. Patented PureFlush membrane flush feature - Clean water flushes the membrane upon start-up
.. Low energy, thin film membrane element(s)
.. "The TV series of R.O. water treatment systems are equipped with a microprocessor based controller which monitors several functional conditions and regulates operation of the high pressure pump and control valves. The controller is connected to sensors which, depending on their state, allow the cyclic production of purified water or prevent operation due to abnormal conditions. The standard configuration of the controller monitors feed water supply pressure for minimum level, product water storage tank level for system start/stop conditions and product water conductivity for maximum set point value and for digital front panel display. Additional optional parameters that the controller is capable of monitoring include main pump high pressure set point, low feed water tank level and membrane flush cycle occurrence and duration. Front panel buttons and digital display allow operator adjustment of set points and flush parameters."
.. *TV High Recovery - Reduce Waste, Uses Less Water - 50%, 60%, up to 70% *Recovery Depending On Water Chemistry.

Better Value, Better Features: TV-Reverse Osmosis "On-The-Spot" Premium Features Now Included:

.. Water Alarm: now included with every TV Series Reverse Osmosis Water Purification Order. Portable water leak detection/water alarm system - Helps detects water leaks and moisture. Sounds a loud alarm when water is detected. Includes 6ft of wire attached to the sensor and up to 100 feet of additional wire can be spliced into the line. Perfect for monitoring from your office or work area.
.. Multipurpose Water Quality Tester: All-In-One waterproof on the spot tester offers high accuracy Electrical Conductivity (EC) / Total Dissolved Solids (TDS) and Temperature measurements in a single tester! No more switching between meters for your routine measurements. The waterproof Combo (it even floats) has a large easy-to-read, dual-level LCD and automatic shut-off. EC/TDS readings are automatically compensated for the effects of temperature (ATC). Fast, efficient, accurate and portable, the Combo Electrical Conductivity / Total Dissolved Solids (TDS) and Temperature tester brings you all the features you've asked for and more! TDS is the sum of the mineral salts in water and if too high can result in objectionable taste, cloudy ice, interference with the flavor of foods and beverages and scale left behind in pipes, machinery, glass, etc.

TV-RO SPECIFICATIONS:
.. Dimensions: 22”W x 25”D x 49”H (2-4KGPD), 29”W x 25”D x 49”H (6-12KGPD)
.. Weight: 140 -200 lbs. depending on model
.. Output*: TV-2000, 4000, 6000, 8000, 10000, & 12000 GPD models
.. Membrane: Low energy, high rejection 4040 thin film type
.. Dissolved Solids Rejection: 98%
.. Prefilter: 10 micron polypropylene depth type
.. Power Req.: 120V, 1 Ph. to 460V 3 Ph.
.. Connections: Feed - 3/4”FPT, product and tank - 1/2” tube
.. Operating Parameters: Max TDS-5000ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below 5 gpg.
.. FREE Shipping within the continental US

Contact us today for great savings! Save now on all TV-RO Systems
We invite you to take advantage of our best prices and specials of the year. Our Representatives are happy to discuss your water purification needs. To get started, simply fill out our TV-RO Quote Form below or email us at sales@roconsumables.com , fax at (760) 896-6999, or toll-free at (877) 788-8387. We look forward to serving you.

TV Series Commercial Reverse Osmosis Specifications
All 2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems Include Custom Features Listed Above

At RO Consumables, we make purchasing commercial water treatment easy and affordable. We even offer commercial business special offers designed to help you save on reverse osmosis pretreatment costs. Request a free business reverse osmosis quote and save today! Current TV-RO Series commercial reverse osmosis special Business Only pretreatment offers will be added to your online quote.

Part #

Gallons Per Day

# of Elements

 Motor Hp
 Price Guide

 TV-RO-2000

 2000

 1

 1.0-1.5
TV-2000: $5,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Free Shipping Within the Continental US
Click For Online TV-RO Quote

 TV-RO-4000

4000

 2

  1.0-1.5
TV-4000: $6,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Free Shipping Within the Continental US
Click For Online TV-RO Quote

TV-RO-6000

 6000

 3

 1.5-2.0
TV-6000: $7,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Free Shipping Within the Continental US
Click For Online TV-RO Quote

 TV-RO-8000

 8000

  4

  1.5-2.0
TV-8000: $8,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Free Shipping Within the Continental US
Click For Online TV-RO Quote

 TV-RO-10,000

 10000

  5

  2.0-3.0
TV-10,000: $9,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Free Shipping Within the Continental US
Click For Online TV-RO Quote

 TV-RO-12,000

 12000

  6

 3.0-5.0
TV-12000: $10,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Free Shipping Within the Continental US
Click For Online TV-RO Quote
TV LARGE VOLUME REVERSE OSMOSIS STORAGE TANKS:
Needed to store water from reverse osmosis system
Note: Our TV reverse osmosis tanks include complete float switches for storage tanks (top tank for shut off)
 Approx. 35" dia x 81" ht. 300 Gallon Storage Tank (green)
(Designed to fit through standard doorways)
Model: TK-300/Float
Price: $995.00ea *Free Shipping
[Add to Cart] [View Cart]
Approx. 47" diameter and 78" high 550 Gallon Storage Tank (green)
Part #: LCX-TK-ST550
Price: $1,195.00ea *Free Shipping
[Add to Cart] [View Cart]

TV REVERSE OSMOSIS REPRESSURE SYSTEM:
Draws water out of the TV storage tank to your application
 Re-pressure pump rated @ 10gpm (110v)
Designed for athmospheric storage tanks listed above.
Model: RP-10GPM
Price: $695.00ea *Free Shipping
[Add to Cart] [View Cart]
TV-Reverse Osmosis Pre-Filtration & Post-Filtration Option List: RainDance Water Systems Package Pricing Savings
Hard Water Pretreatment, pH Correction, UV Disinfection, Iron, Manganese, Hydrogen Sulfide Gas Prefiltration
HARD WATER PRETREATMENT: NO CHLORIDE DISCHARGE, NO BACKWASHING
Calcium and magnesium (limescale) - two of the hardest minerals for a reverse osmosis membrane to remove. Our automatic antiscalant feed system will provide hard water treatment and extend the life of your reverse osmosis membrane and, thus, improve the efficiency of your reverse osmosis water filter.
Water Softener Alternative: Hard Water Treatment (NO-Salt Discharge) antiscalant feed system - Pretreats and protects the membrane from hard water scale and silica. Antiscalant injection method is preferable to brine regenerating softeners as it is lower maintenance, economical, and is perfect for areas of the country that have water softener chloride discharge limits. The antiscalant formulation has been certified by the National Sanitation Foundation (NSF) under ANSI/NSF Standard 60 for use in producing potable water.

Model: TOM-CFP-V3000
Protects ro membrane from hard water scale, Calcium Carbonate (CaCO3),Calcium Sulfate (CaSO4),Barium Sulfate (BaSO4) Strontium Sulfate (SrSO4), Calcium Fluoride (CaF), and Silica (SiO2).
Features:Power: 110v, Automatic antiscalant injection pump with solution tank
Model: TOM-CFP-V3000
Price: $995.00ea *Free Shipping
[Add to Cart] [View Cart]

Post TV-RO pH CORRECTION SYSTEM: Increase your pH
Designed to keep your ro water non-corrosive and protect any copper plumbing.
Model: RDWS-PH-MAX How it works: The cylinder is installed into the water supply as near to the source as possible so that all the water from that point onwards is neutralised. Water passes into the cylinder and permeates through the pH correction media before passing out into the main water line again. The media dissolves into the water until the pH is raised to approximately 7 or 7.2. Once this level the water is neutral and no more media dissolves.

Ask about our best Packaged pH Correction Pricing when purchased with our TV Reverse Osmosis

Please call 1-877-788-8387 or Email: Sales@ROConsumables.com



High Performance Reverse Osmosis Signature
State Of The Art Stainless Steel TSM RO Series
Stainless steel is used throughout; in frame, pressure vessels and fastening hardware to provide the
structural strength and corrosion resistance appropriate for a commercial appliance.

Perefect Choice - compact wall mount water filter solutions for coffee shops, cafe's, restaurants, spot-free rinse, labs, and small business.

Need additional information ? Use our TSM Reverse Osmosis Same Day Quote Form

Wall Mount / Shelf Mount 400gpd - 1500gpd Water Production
TSM Series Commercial Reverse Osmosis Water Purifiers

TSM Reverse Osmosis System Shown With Attached Pretreatment (Included Free For A Limited Time Only )

TSM QUALITY COMMERCIAL R.O. - User Friendly !
TSM series of commercial Reverse Osmosis water purifiers built to suit the needs and requirements of commercial pure water users.
This includes restaurants, coffee stores, convenience stores, micro breweries, supermarket produce and food preparation operations, misting and humidification systems, car wash facilities, and many other businesses that must have consistent high quality water for their daily operations. The key factors of reliability, servicability, and consistent performance with minimum user intervention are achieved in the solid design of the TSM systems. Stainless steel is used throughout; in frame, pressure vessels and fastening hardware to provide the structural strength and corrosion resistance appropriate for a commercial appliance.

The TSM system design is optimized for either shelf mount or wall mount installation. The four models; 400 GPD, 800 GPD, 1200 GPD and 1500 GPD all occupy the same very compact footprint. This allows flexibility in accomodating the limited space available in most commercial utility equipment locations. Quick connect tube fittings on all system ports further simplifies installation and service. Most important, all TSM models incorporate the most reliable combination of proven reverse osmosis hydraulic design and state of the art Thin Film membrane elements to provide the long term performance expected by commercial users.

TSM FEATURES
All TSM Reverse Osmosis systems include the
following important quality features.
• Stainless Steel Frame & Pressure Vessels
• Thin Film Composite Membranes
• High Performance 3/4 HP Motors
• Positive Displacement Rotary Vane Pump
• Integral Hydraulic Manifold Assembly
• Fast Flush Control
• Low Feed Pressure Cutout Switch
• Tank Pressure Control Switch
• Delrin Orifice or Teflon Tube Flow Control
• Feed Inlet Solenoid Valve
• SS Needle Valve Pressure Control
• Product Tank Pressure Relief Valve
New Separate Feature: Water Alarm now included with every TSM Reverse Osmosis Water Purifier Order. Alarm can be floor or wall mounted. Includes 6ft of wire attached to the sensor and up to 100 feet of additional wire can be spliced into the line. Perfect for monitoring from your office or work area.
• Includes: TDS Meter -Tester. The Only Way To Know If Your Reverse Osmosis RO Membrane Is Performing Correctly - Tests for TDS - Total Dissolved Solids. A Must For All RO System Owners. Compare Incoming Feed Water To Treated Water. TDS is the sum of the mineral salts in water and if too high can result in objectionable taste, cloudy ice, interference with the flavor of foods and beverages and scale left behind in pipes, machinery, glass, etc.
• All Systems Wet Tested Before Shipping
Operating Parameters: Max TDS-2500ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below 5 gpg.
FREE SHIPPING ON ALL TSM REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.
OVERSEAS SHIPPING AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP
NO CHARGE FOR EXPORT CRATING

RainDance Water Systems Exclusive Limited Time Only TSM Stainless Steel RO Series FREE Pre-Treatment Special

Protect Your Investment, Save Money, Avoid Unnecessary Downtime! - LIMITED TIME FREE SPECIAL
INCLUDED FREE *Dual 20" sediment / carbon filter pretreatment system included FREE with every TSM reverse osmosis system order. Attaches directly to the base of the TSM RO system creating a unitized wall mount assembly.The Pre-filter components are mounted within a sturdy, heavy gauge stainless steel frame with easy access to inlet and outlet connections.connections.

FREE Integrated Dual Sediment/Carbon Prefilter System Included.
Provides Reverse Osmosis Membrane Protection from Premature Fouling (loss of rejection & production).
Consists of (1) Sediment Filter Cartridge + (1) Carbon Block Filter Cartridge.
Sediment Filter is rated @ 5 microns and filters Suspended Solids (dirt, rust, sediment, etc).
Carbon Filter Significantly Reduces Chlorine and Organic Compounds.
Heavy gauge stainless steel frame with fasteners to attach to the TSM RO System,
wall mountable as support for TSM-RO system, 2 each 20” Slim Line pre-filters,
Feed shut-off ball valve and EZ-Wrench for no-hassle pre-filter maintenance.


Need additional information ? Use our TSM Reverse Osmosis Same Day Quote Form




Premium Stainless Steel TSM-800 Reverse Osmosis Water Filter Shown With 40 Gal Pre-Charged Pressure Tank
Compact - Perfect For Restaurants, Cafe's, Bars, Coffee, Tea, Ice Supply, Labs, Small Business

TSM Series Commercial Reverse Osmosis Specifications
Signature Stainless Steel TSM Series Commercial Reverse Osmosis Price Guide

A must have for consistent high quality water - Stainless steel (not aluminum) is used throughout; in frame, pressure vessels
and fastening hardware to provide the structural strength and corrosion resistance appropriate for a commercial appliance.

Need additional information ? Use our TSM Reverse Osmosis Same Day Quote Form


Part #

Gallons Per Day

# of Elements

 Motor Hp

 Voltage

 Price

 TSM-RO-400

 400GPD

 1

 3/4

 110/220
TSM-400: $2,998.00
[Add to Cart] [View Cart]
*Free shipping within the continental US
E-Mail Or Call Toll Free
1-877-788-8387

 TSM-RO-800

 800GPD

 1

  3/4

 110/220
TSM-800: $3,198.00
[Add to Cart] [View Cart]
*Free shipping within the continental US
E-Mail Or Call Toll Free
1-877-788-8387

TSM-RO-1200

 1,200GPD

 1

  3/4

 110/220
TSM-1200: $3,298.00
[Add to Cart] [View Cart]
*Free shipping within the continental US
E-Mail Or Call Toll Free
1-877-788-8387
 TSM-RO-1500

  1,500GPD

 1

  3/4

  110/220
 TSM-1500: $3,498.00
[Add to Cart] [View Cart]
*Free shipping within the continental US

TSM-1500 Overall Dimensions:
45" W x 8" D x 14" HT

Spec Sheet available upon request
Email: Sales@RainDanceWaterSystems.com

TSM Series SS Reverse Osmosis can be used with your existing atmospheric storage tank & pressure tanks Or choose from our options list below

TSM REVERSE OSMOSIS STORAGE TANKS:
Needed to store water from reverse osmosis system
Note: Our TSM reverse osmosis tanks include complete float switches for storage tanks (top tank for shut off)
 Approx. 35" dia x 81" ht. 300 Gallon Storage Tank (green)
(Designed to fit through standard doorways)
Model: TK-300/Float
Price: $995.00ea *Free Shipping
[Add to Cart] [View Cart]
Approx. 47" diameter and 78" high 550 Gallon Storage Tank (green)
Part #: LCX-TK-ST550
Price: $1,195.00ea *Free Shipping
[Add to Cart] [View Cart]

TSM REPRESSURE SYSTEM:
Draws water out of the TSM storage tank to your application
 Re-pressure pump rated @ 10gpm (110v)
Designed for athmospheric storage tanks listed above.
Model: RP-10GPM
Price: $695.00ea *Free Shipping
[Add to Cart] [View Cart]

TSM Pre-Filtration & Post-Filtration Option List: Take Advantage Of Great Savings With RDWS Package Pricing
Hard Water Pretreatment, pH Correction, UV Disinfection, Iron, Manganese, Hydrogen Sulfide Gas Prefiltration
HARD WATER PRETREATMENT: NO CHLORIDE DISCHARGE, NO BACKWASHING
Calcium and magnesium (limescale) - two of the hardest minerals for a reverse osmosis membrane to remove. Our automatic antiscalant feed system will provide hard water treatment and extend the life of your reverse osmosis membrane and, thus, improve the efficiency of your reverse osmosis water filter.
Water Softener Alternative: Hard Water Treatment (NO-Salt Discharge) antiscalant feed system - Pretreats and protects the membrane from hard water scale and silica. Antiscalant injection method is preferable to brine regenerating softeners as it is lower maintenance, economical, and is perfect for areas of the country that have water softener chloride discharge limits. The antiscalant formulation has been certified by the National Sanitation Foundation (NSF) under ANSI/NSF Standard 60 for use in producing potable water.

Model: TOM-CFP-V3000 (protects ro membrane from hard water scale 5gpg to 200gpg)
Features:Power: 110v, Automatic antiscalant injection pump with solution tank
Model: TOM-CFP-V3000
Price: $995.00ea *Free Shipping
[Add to Cart] [View Cart]

* Free Shipping Within The Continental US

"Economy Series" Reverse Osmosis Water Purification: 5 Stages, 100 Gallons Per Day Capacity With 10Gal Storage Tank

Applications Include: Restaurant Water Filtration, Cafe's, Bars, Home Wet Bar, Coffee & Tea Shops




The reverse osmosis unit measures 20"L x 19"W x 20"H; 10 gallon pressurized storage tank is 15" high and 23" in diameter; total system weighs approx. 60 lbs.

Stage 1 Sediment Pre-Filter: A pre-filter sediment cartridge is utilized, which because of the fine micron rating, is effective in removing dirt and sand particles.
Stage 2 Initial Carbon Pre-Filter: The high quality carbon pre-filter provides enhanced reduction of chlorine, off taste, odor, and color.
Stage 3 Secondary Carbon Pre-Filter: This secondary carbon pre-filter provides effective organic chemical filtration and does not release carbon fines. It provides for improved membrane performance.
Stage 4 High Capacity Reverse Osmosis Membrane: A thin film composite (TFC) high quality membrane that processes up to 100 gallons per day.
Stage 5 Carbon Post-Filter: This filter provides final polishing of processed water leaving the storage tank.

5 Stage 100gpd Reverse Osmosis With 10 Gallon Pressurized Storage Tank Specifications:
up to 100 gallons per day - Water When You Want It !
Tank Capacity: TANK, BLADDER, METAL, 15" X 23", 15 (10.7) GAL, 1/4" MNPT
Pre-Filter: sediment 5 micron - 10" spun poly
Second Pre-Filter: 10" granular activated carbon (CS)
Third Pre-Filter: carbon CTO block
Post-Filter: 10" granular activated carbon in-line
Membrane: 100 gpd TFC
Feed Water Pressure: 40 PSI min/80 PSI max
Feed Water Temperature: 40ºF-100ºF
Feed Water pH: 3 min to 10 max
Total Dissolved Solids: 2000 ppm normal max
The smallest compact 100gpd high capacity 5 stage reverse osmosis system we offer - Up to 100 Gallons Per Day of Reverse Osmosis Filtered Water
Fast Output To Meet Your Water Use Demands - Water when you need it - Produces up to 15 times faster than smaller 10gpd ro systems which may take all day to fill the storage tank once the water has been depleted. This reverse osmosis system can also be installed in restaurants and office buildings to supply your employees and co-workers with quality premium drinking water.




Part #: RainDance-5-100-10-RO: 5 Stage 100gpd Reverse Osmosis w/ 10gal Tank Price: $695.00ea
Free Shipping Within The Continental U.S.

[Add to Cart] [View Cart]

Order online using our secured shopping cart and receive a Free Filter Replacement Package ( $70.00 Value) With Purchase

For additional information please call Toll-Free 1-877-788-8387 or email Sales@RainDanceWaterSystems.com


RainDance Water Systems Custom TV-RO Skid Series Commercial Reverse Osmosis

Our RDWS-TV-RO Skid Mount Series reverse osmosis systems are designed for applications such as glassware, rinsing, beverage, solution preparation, and numerous other scientific, commercial and industrial applications. Water purified by reverse osmosis has had often greater than 95%of dissolved ions, and 99% of most contaminants removed.

We offer commercial skid water filter solutions for distilleries, breweries, wineries, vineyards, micro-breweries, purified ice and beverage companies.

We offer sodium salts, total dissolved solids, and silica water filtration through commercial reverse osmosis, nano filtration and ultrafiltration systems for agriculture including palm trees, tomatoes, avocados, almonds, nut farms, berries, citrus fruits, grapes, green houses, orchards, and irrigation filtration system for farms.

We offer bacteria, nitrate, sulfate, salt water filtration systems for livestock including horse farms, cattle, pig, chicken, turkey, sheep, duck, poultry farms, dairy farms, dog kennels, exotic animal farms.

We offer complete reverse osmosis water purification skid mount solutions for manufacturing including bottled water stores, pharmaceutical, electronic industry, process water, chemical industry, electroplating industry, electrical power generating, polymer solutions and more.

A small sample of our water treatment customer base includes: The U.S. Army, The U.S. Environmental Protection Agency (EPA), The U.S. Fish and Wildlife Federation, The United States Coast Guard, Washington St. National Park Service, San Diego State University, Arizona State University, Palomar College, Miasole, Trico Products Corporation, Affinity Flavors, Old Country Vineyards, Snake River Power Plant, Berkley Surgical Corporation, Abengoa Energy of NE, Golden Eagle Thoroughbred Horse Farm, Buckridge Plantation and Stables, Advanced Marine PTE., Quinlan Texas Elementary School, Fairbanks Farms, Hunter Industries, Sonance Corp., Owens Brigam Medical, 1st Choice GMAC Realty, Century 21 Realty, Coldwell Banker Realty, Austin Productions, Fairfield Country Club, and Auer Precision Inc. Just to name a few.


RDWS-TV-RO-SKID Series 2,000 gpd to 12,000 gpd
The Complete Package - Skid Mount Commercial Reverse Osmosis Systems
RainDance Water Systems Fully Integrated  RDWS-TV-RO-SKID SERIES
Fully Customizable To Fit Your Water Requirements - Skid Mount Commercial Reverse Osmosis Water Filtration System




(appearances may vary, 300gal. storage tank included, but not shown)

Water treatment at its best! Multi-stage water treatment for your business.

RainDance Water Systems RDWS-TV-RO-Skid Series Commercial Reverse Osmosis Systems


RainDance Water Systems is proud and honored to have provided Custom Skid Mount Reverse Osmosis Systems to the US Army to supply our troops in Afghanistan quality drinking water.

WE INVITE COMPARISONS TO ANYTHING ON THE MARKET!

Complete multi-filtration process on one skid. Unlike, most multi-piece water treatment systems that are scattered throughout your business our RDWS-TV-RO-SKID Series mobile integrated skid mount unit contains complete pretreatment, reverse osmosis, re-pressurization pump, motor, microprocessor based controller, and UV disinfection all on a single skid base frame with wheels for easy positioning. To complete our RDWS-TV-RO-SKID Series reverse osmosis package these units also include a 300gal storage with float assembly as a standard feature. Most important our RDWS-TV-RO-SKID Series reverse osmosis systems are pretested before shipping, user friendly, components are shipped pre-plumbed on the skid and unit only requires a 220 volt 1 phase 60 Hz power source - custom & overseas power connections available.

Our skid mount RDWS-TV-RO-SKID Series reverse osmosis systems are designed for applications such as glassware, rinsing, beverage, solution preparation, manufacturing, food & restuarant and numerous other scientific, commercial and industrial applications. Water purified by reverse osmosis has had often greater than 95%of dissolved ions, and 99% of most contaminants removed.

RDWS-TV-RO-SKID Series skid mount commercial reverse osmosis applications include: Agriculture, Livestock, Green Houses- Orchards, Groves, Food, Ice,and Beverage Industry, Bottled Water Stores, Pharmaceutical, Electronic Industry, Process Water, Chemical Industry, Electroplating Industry, Electrical Power Generating, Polymer Solutions and more.

RDWS-TV-RO-SKID Packaged Skid Mount Reverse Osmosis is pre-plumbed and pre-wired in most cases with one inlet connection, one drain connection, one water use connection, and one electrical connection to allow for fast hassle free installation. From the delivery of the equipment to your facility to the set up and use of water - In hours not days!

How It Works: User Friendly ! Everything within the skid is pre-plumbed and wired. There is a single point power inlet connection and the customer has to simply connect to the storage tank and then to his usage. Once our Integrated Skid Mount RO is installed and feed water is made available, the Storage Tank will begin to fill with product water. The product water will continue to fill the Storage Tank until the tank float switch closes and shuts the entire system off. At the same time, while the tank is filling, concentrate water will begin to flow into the drain system. The concentrate water will continue to flow to the drain system until the tank float switch closes and shuts the entire system off when the storage tank is full. When there is a demand for water, the skid mount Repressurization System is activated and draws product water from the Storage Tank. The product (RO) water is then delivered with the on skid re-pressure system to your usage point. If enough product water is used to the point where the float switch is reopened, the Skid Mount RO System is automatically reactivated and begins to replace the product water that has been depleted.

RainDance Water Systems Pre-Plumb & Wired Integrated TV-RO Skid Series Standard Features
Fully Customizable For Both City & Well Water Sources
  • All components (excluding storage tank) located and contained on our skid mount platform with wheels - for easy positioning.
  • Approx. Weight & Skid Dimensions: 51"W x 32"H x 63"H / Estimated Dry Weight 500lbs (2,000gpd -4,000gpd)
  • Approx. Weight & Skid Dimensions: 58"W x 37"H x 63"H / Estimated Dry Weight 750lbs (6,000gpd -12,000gpd)
  • Includes on skid Single point power connection for 220V, 60 Hz, 1-Phase power. <Custom and Overseas power connections available>
  • Includes on skid (NO-Salt Discharge) Hard Water Treatment antiscalant feed system - Pretreats and protects the membrane from hard water scale, silica and highly mineralized water. Antiscalant hard water pretreatment method is preferable to salt based water softeners as it has more mineral pretreatment capabilities, no drain line waste water, lower maintenance, no salt pellets required, no salt discharge, economical, and is perfect for areas of the country that have chloride discharge limits. The antiscalant formulation has been certified by the National Sanitation Foundation (NSF) under ANSI/NSF Standard 60 for use in producing potable water.
  • Includes on skid digital automatic *"No-Maintenance" well water iron, manganese, hydrogen sulfide gas, and suspended solids pretreatment system or substitute our *"No-Maintenance" chlorine removal system for city water sources. *No maintenance refers to automatic backwashing capabilities and no routine media replacement required - media can last 5-10 years.
  • Includes on skid Pretreatment lock-out switch and manual bypass included for automatic backwashing systems.
  • Includes on skid Automatic Flush on start up - Fast clean-flushes membrane each time the unit starts.
  • Includes on skid microprocessor based controller - Controller includes digital product water conductivity indicator, Controller monitors feed water pressure, pump output pressure, product water conductivity, product water storage tank level and performs membrane flush on startup. Low feed pressure, high pump pressure and high product water conductivity result in alarm state indications. System control panel includes prefilter in and out pressure gauges, pressure vessel in and out pressure gauges, product water flow meter, recirc. flow meter with control valve and concentrate flow meter with control valve."Perfect for serviceman or do it yourselfer."
  • Includes on skid "Low Energy" High Rejection Membranes in Stainless Steel Pressure Vessel(s)
  • Includes additional testing monitor - Portable waterproof tester offers high accuracy electrical conductivity (EC), total dissolved solids (TDS) and temperature measurements in a single tester. Allows you to test untreated and post treated water.
  • Includes 1- 35" dia. x 81" ht. 300 gallon storage tank. For ease of handling and ability to get through doors we use a multiple array of tanks. Product water storage tank is green, with 16" manway, 2" bottom inlet/outlet (bushed to 1.25"). Two ea. Pump Up float switches installed in tank.
  • Includes on skid 10gpm @ 48psi fully automatic electric pump (constant pressure) re-pressure system - Draws water out of the storage tank. Pump has integral switch for 40/60 psi output control and integral low feed water protection shutdown.
  • Includes on skid chemical free ultraviolet UV disinfection system. UV Sterilizer for disinfection of feed water to inhibit bio fouling of R.O. membranes.
  • Each skid mount reverse osmosis is fully assembled and tested before it leaves the plant.
  • For optimum Skid RO Series performance customers must have at least 7gpm @ 30psi available. Note: Our Skid RO Series contains complete pretreatment for chlorine and hard water (calcium) typically associated with municipal water sources. If Skid RO is to be used on well water we offer the following guidelines: Operating Parameters: Max TDS-5000ppm, Total iron is less than 10ppm, Manganese is less than 3ppm, H2S less than 10ppm, Water hardness below 250gpg, pH 6.5 -8.5, No iron bacteria. Calculations of production capabilities are based on a feed water temperature of 60 Deg. F. Lower temperatures may result in slightly lower production levels.
  • Unlike most companies , we are able to tailor our Skid RO systems to your needs. To ensure the longest trouble free system life and best possible treated water quality, we encourage you to fax (760-896-6999) or E-mail your water chemistry report or let us know the name of your municipal water district provider. You may also send us a water sample for evaluation.
  • FREE WOOD CRATING FOR SKID TO ASSURE SAFE DELIVERY.
  • FREE SHIPPING ON ALL RO SKID REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.
  • OVERSEAS SHIPPING AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP
Not all reverse osmosis systems are created equal! RainDance Water Systems offers top of the line
state of the art reverse osmosis systems for your home, factory, business, and farm. See what sets our reverse osmosis filters apart from all others and why companies and home owners from all over the Globe have chosen RainDance Water Systems for their water treatment needs.

See and compare our unmatched Skid RO Reverse Osmosis selection below - standard features (listed above) include movable skid on casters, 300 gallon storage tank, pretreatment, UV system, and microprocessor based controller. Most important our Skid RO Series are pretested before shipping, user friendly, and components are shipped pre-plumbed on the skid and in most cases unit only requires a single point power connection

RainDance Water Systems Pre-Plumb & Wired Integrated TV-RO Skid Series
Fully Customizable For Both City & Well Water Sources

RDWS-TV-RO-Skid Reverse Osmosis Systems Selection & Pricing


 Model #

 Description

 Price

  RDWS-TV-RO-SKID-2000
 Complete skid mount 2000 gallon per day reverse osmosis system includes
all listed standard features and
1 - 35" dia x 80" ht 300 gallon storage tank
Contact Us For Current Price

Need A Quote ?
Click Here For Same Day Quoting

   RDWS-TV-RO-SKID-4000
 Complete skid mount 4000 gallon per day reverse osmosis system includes
all listed standard features and
1 - 35" dia x 80" ht 300 gallon storage tank
Contact Us For Current Price

Need A Quote ?
Click Here For Same Day Quoting

   RDWS-TV-RO-SKID-6000
Complete skid mount 6000 gallon per day reverse osmosis system includes
all listed standard features and
1 - 35" dia x 80" ht 300 gallon storage tank
Contact Us For Current Price

Need A Quote ?
Click Here For Same Day Quoting

  RDWS-TV-RO-SKID-8000
Complete skid mount 8000 gallon per day reverse osmosis system includes
all listed standard features and
1 - 35" dia x 80" ht 300 gallon storage tank
Contact Us For Current Price

Need A Quote ?
Click Here For Same Day Quoting

  RDWS-TV-RO-SKID-10000
Complete skid mount 10000 gallon per day reverse osmosis system includes
all listed standard features and
1 - 35" dia x 80" ht 300 gallon storage tank
Contact Us For Current Price

Need A Quote ?
Click Here For Same Day Quoting

 RDWS-TV-RO-SKID-12000
Complete skid mount 12000 gallon per day reverse osmosis system includes
all listed standard features and
1 - 35" dia x 80" ht 300 gallon storage tank
Contact Us For Current Price

Need A Quote ?
Click Here For Same Day Quoting
Larger Custom Skid Mount Reverse Osmosis Systems Available

All RDWS-TV-RO-SKID Series - Free shipping provided within the continental United States

Ordering your new commercial reverse osmosis filter has never been easier. We offer complete pricing and detailed information on our reverse osmosis filters throughout our website. If you have a specific question before ordering please call toll free 1-877-788-8387 or e-mail our staff for a fast informative response.


INDUSTRIAL REVERSE OSMOSIS WATER FILTRATION

Industrial High Capacity TP Series Industrial Reverse Osmosis 24,000 to 300,000 GPD (16-208gpm) Pricing Guide

RainDance Water Systems specializes in creating specific RO systems to meet unique customer needs. The Horizontal product line allows for large volumes and specialized water treatment. These custom engineered systems can handle a broad range of industrial, commercial and agricultural applications.

Output: 24,000-1,000,000 gal/day Ideal for: Surface, Well, City, and Brackish Water

Integrated Treatment Systems - Industrial Reverse Osmosis Water Filtration Systems
In many past projects, we have had the responsibility of integrating multiple water treatment and process functions with RO membrane purification on an integrated skid system. Such integrated processes have included bulk media prefiltration, ozonation, UV, antiscalant injection, post pH correction injection as well as specific customer components. These specialized integrated systems come on a unitized skid frame with central water and power connections.
These systems have been produced for applications such as humidification control, environmental fog and misting, hothouse/agriculture, food processing, bio-manufacturing, power plant process water, potable water production and others. When a complete system approach is needed to provide the solution to a water treatment requirement, we can deliver the solution.

High purity water treatment systems have included both Reverse Osmosis/Deionizing Resin (RO/DI) as well as Reverse Osmosis/Electrodeionization (RO/EDI) systems. These systems produce output water up to 18 megohms and have been employed in chemical processes, medical device cleaning and semiconductor manufacturing. Engineers are well acquainted with the special considerations required in the design and implementation of such systems as to materials, instrumentation, safeguards and controls necessary to provide a reliable and dependable system product.








TP Series High Capacity Industrial Reverse Osmosis
Available in 24,000, 30,000, 40,000, 50,000, 60,000, 70,000, 80,000, 90,000, 100,000 UP TO 1,000,000GPD Capacities.

<Click Here TP Industrial Series Request Information & Price Quote>


COMMERCIAL / INDUSTRIAL
HORIZONTAL REVERSE OSMOSIS WATER FILTRATION ON CASTER WHEELS

Commercial High Capacity TH Series Commercial Reverse Osmosis 12,000 to 24,000 GPD (8-16gpm) Pricing Guide
(Pricing includes all State Of The Art standard features listed below)


Commercial High Capacity TH Series Commercial Reverse Osmosis 12,000 to 24,000 GPD (8-16gpm) Pricing Guide
TH Series High Capacity Commercial Reverse Osmosis 12,000-24,000gpd
TH Series Request Information & Price Quote

All TH Series commercial reverse osmosis have caster wheels for easy positioning and/or relocation.


We pride ourselves on our workmanship and our attention to detail.To ensure our customers that our systems will perform to their utmost potential WE RECOMMEND FAXING AN EXISTING WATER ANALYSIS OR HAVING YOUR WATER TESTED TO DETERMINE WHICH IS THE BEST SYSTEM FOR YOUR WATER CHEMISTRY. Once that recommendation is made, you can have complete faith that your system will work at its peak potential over a long period of time. You can choose to buy a reverse osmosis system "off the rack" and take your chances or you can let us tailor make a system based upon your specific needs. This is what sets RainDance Water Systems commercial reverse osmosis systems apart from all the rest.

Customer Assurance - If you have a current water analysis report, please fax it to us @ 760-896-6999, E-mail or send at least a 16oz sample of unfiltered water in a leak proof bottle to:

Please send sample and this form to:
RainDance Water Systems Attn: Commercial Water Sample
1672 E. Main St., Suite E, PMB 312, Ramona, California 92065

Once your feed water has been analyzed, we will provide you with a firm system recommendation.

The only way to ensure that a commercial reverse osmosis system will be both optimally effective and efficient is to plan & design each system on a complete breakdown of the raw water to be treated. RainDance Water Systems will thoroughly analyze your current water analysis or a submitted water sample before making a recommendation. Once that recommendation is made, you can have complete faith that your system will work at its peak potential over a long period of time. You can choose to buy a reverse osmosis system "off the rack" and take your chances or you can let us tailor make a system based upon your specific needs. This is what sets RainDance Water Systems commercial reverse osmosis systems apart from all the rest.

Our customers include numerous companies, manufacturers, cattle & dairy farms, and households around the world - United States, Spain, Japan, Canada, Taiwan, Indonesia, Malaysia, United Kingdom, Cayman Islands, and the Bahamas who require water treatment and pure water applications.

RainDance Water Systems customers include: The United States Coast Guard, Washington St. National Park Service, San Diego State University, Palomar College, Quinlan Texas Elementary School, Hunter Industries, Sonance Corp., Owens Brigam Medical, 1st Choice GMAC Realty, Century 21 Realty, Coldwell Banker Realty, Austin Productions, Fairfield Country Club, and Auer Precision Inc. just to name a few.

RainDance Water Systems
P.O. Box 2312 Ramona, Ca.




Commercial Water Treatment Systems:
Home | Commercial Reverse Osmosis | Light Commercial Reverse Osmosis | EDI - Electrodeionization | Pharmaceutical Water Filters | Reverse Osmosis Quote | Iron and Manganese Removal | Chlorine and Chemical Removal | Multi-Media Filters |Water Treatment Chemicals | Reverse Osmosis Membrane Cleaners | Reverse Osmosis Antiscalants | Reverse Osmosis Membranes | Commercial Water Filters | Commercial Filter Housings |Water Treatment Chemical Quote | Reverse Osmosis Membrane Quote || Water Filter Quote | Filter Housing Quote | Nano Filtration

RO Consumables Copyright © 2001. All Rights Reserved.
ROConsumables.com one stop for commercial reverse osmosis solutions, storage tanks, replacement filters, reverse osmosis membranes, water treatment systems
